Description

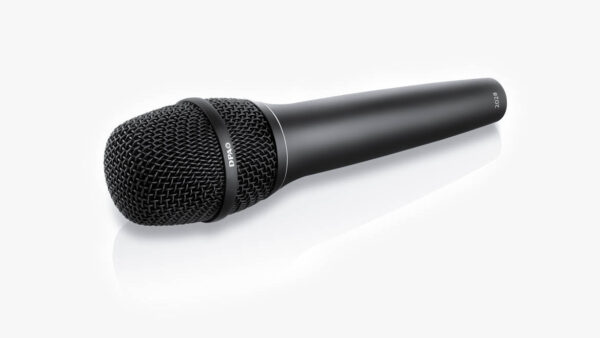

2028 Vocal Microphone
Built for life on the road
- Renowned DPA sound
- Natural vocals – from folk to metal
- Reduces feedback issues
- Rugged enough for the live stage
- Uniform supercardioid directionality
- Extreme SPL handling
Specifications
Directional pattern
Supercardioid
Principle of operation
Pressure gradient
Cartridge type
Pre-polarized condenser
Effective frequency response
20 Hz – 20 kHz
Frequency range, ±2 dB, at 12 cm (4.7 in)
100 Hz – 16 kHz. Permanent 3rd order low-cut filter at 80 Hz
Sensitivity, nominal, ±3 dB at 1 kHz
5 mV/Pa; -46 dB re. 1 V/Pa
Equivalent noise level, A-weighted
Typ. 22 dB(A) re. 20 µPa (max. 23 dB(A))
Distortion, THD < 1%
136 dB SPL RMS, 139 dB SPL peak
Dynamic range
Typ. 117 dB
Max. SPL, THD 10%
160 dB SPL peak
Rated output impedance
150 Ω
Minimum load impedance
1 kΩ
Cable drive capability
100 m (328 ft)
Output balance principle
Impedance balancing with Active Drive
Common mode rejection ratio (CMRR)
> 50 dB at 1 kHz
Power supply (for full performance)
48 V Phantom power (±4 V)
Current consumption
Max 2.5 mA
Connector
XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: – phase
Weight
286 g (10.1 oz)
Diameter
48 mm (1.9 in)
Capsule diameter
19 mm (0.75 in)
Microphone length
188 mm (7.4 in)
Maximum output voltage, RMS
9 Vrms; 19 dBV; 28 dBu
Polarity
+V at pin 2 for positive sound pressure
