ST2006A Stereo Pair with 2006A Omnis
- Sensitivity selected pair
- Acoustic authenticity
- Linear in a large frequency bandwidth
- PeliTM Case transportation and protection
The DPA ST2006A is a complete DPA 2006A Stereo Pair with two handpicked omni microphones, selected on sensitivity within ±1.5 dB.
As main AB stereo pair the 2006As deliver precise acoustic fingerprint and true tone. Orchestra, acoustic piano, guitar, wind instruments and choirs are among the most evident applications for this high-value-for-money pair.

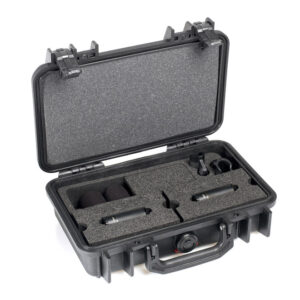

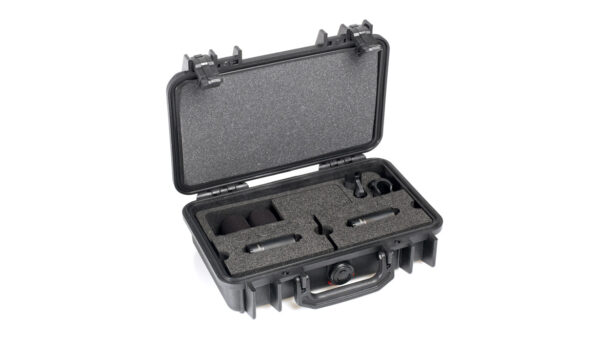

The foam design in the heavy-duty transportation box allows for fast and easy exchange of microphone and accessory inlays.
Included in this kit
Two carefully matched 2006A omni microphones, sturdy PeliTM case, holders, and windscreens.
Specifications for ST2006A Stereo Pair with 2006A Omnis
| Directional pattern: | Omnidirectional |
|---|---|
| Principle of operation: | Pressure |
| Cartridge type: | Pre-polarized condenser, Twin Diaphragm Capsule |
| Frequency range: | 20 Hz – 20 kHz |
| Frequency range, ± 2 dB: | 50 Hz – 20 kHz with typ. 3 dB soft boost at 14 kHz |
| Sensitivity, nominal, ± 2 dB at 1 kHz: | 40 mV/Pa; -28 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted: | Typ. 16 dB(A) re. 20 µPa (max. 18 dB(A)) |
| Equivalent noise level, ITU-R BS.468-4: | Typ. 28 dB (max. 30 dB) |
| S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): | Typ. 78 dB(A) |
| Total Harmonic Distortion (THD) at 1 kHz: | < 1 % up to 130 dB SPL peak |
| Dynamic range: | Typ. 114 dB |
| Max. SPL, peak before clipping: | 141 dB |
| Switchable attenuator: | 0 dB / -20 dB |
| Output impedance: | < 200 ohm |
| Minimum load impedance: | 2 kohm |
| Cable drive capability: | 100 m (328 ft) |
| Output balance principle: | Impedance balancing with Active Drive |
| Common Mode Rejection Ratio (CMRR): | > 60 dB |
| Power supply (for full specifications): | 48 V Phantom power (± 4 V) |
| Current consumption: | 2.8 mA |
| Connector: | XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: – phase |
| Color: | Matte black |
| Weight: | 160 g (5.6 oz) |
| Microphone diameter: | 19 mm (0.75 in) |
| Length: | 164 mm (6.5 in) |
| Output voltage, RMS: | > 5 V |
| Polarity: | +V at pin 2 for positive sound pressure |
| Temperature range: | -40 °C to 45 °C (-40 °F to 113 °F) |
| Relative Humidity (RH): | Up to 90% |
| Sensitivity selection tolerance (at 1 kHz): | ± 1.5 dB |
Additional information
| Weight | 2 kg |
|---|
