DPA ST2011A Stereo Pair with 2011A Cardio
CHF2'032.00
DPA ST2011A Stereo Pair with 2011A Cardio
- Description
- Additional information
- Brand
Description
ST2011A Stereo Pair with 2011A Cardioids
- Sensitivity selected pair
- Superb stage separation and level control
- All-round workhorses
- PeliTM Case transportation and protection
The ST2011A is a complete DPA 2011A Stereo Pair with two handpicked cardioid microphones, selected on sensitivity within ?1.5 dB making several stereo principles like XY and ORTF easy to obtain.
Finding its use on numerous stages and recording sessions, the ST2011A exhibits a previously unheard blend of clarity, richness and dynamic range, the 2011As perform close to much more exclusive microphone pairs.

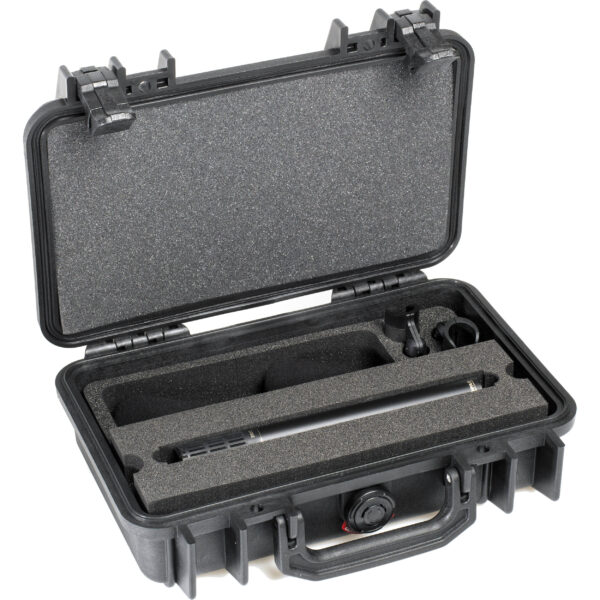

The foam design in the heavy-duty transportation box allows for fast and easy exchange of microphone/accessory inlays.
Included in this kit
Two carefully matched 2011A cardioid microphones, sturdy PeliTM case, holders, and windscreens.
| Directional pattern: | Cardioid |
|---|---|
| Principle of operation: | Pressure gradient, with interference tube |
| Cartridge type: | Pre-polarized condenser, Twin Diaphragm Capsule |
| Frequency range: | 20 Hz – 20 kHz |
| Frequency range, ? 2 dB, at 30 cm: | 50 Hz – 17 kHz with 3 dB soft boost at 12 kHz |
| Sensitivity, nominal, ? 2 dB at 1 kHz: | 10 mV/Pa; -40 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted: | Typ. 20 dB(A) re. 20 ?Pa (max. 23 dB(A)) |
| Equivalent noise level, ITU-R BS.468-4: | Typ. 33 dB (max. 36 dB) |
| S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): | Typ. 74 dB(A) |
| Total Harmonic Distortion (THD) at 1 kHz: | < 1 % up to 137 dB SPL peak |
| Dynamic range: | Typ. 117 dB |
| Max. SPL, peak before clipping: | 153 dB |
| Switchable attenuator: | 0 dB / -20 dB |
| Output impedance: | < 200 ohm |
| Minimum load impedance: | 2 kohm |
| Cable drive capability: | 100 m (328 ft) |
| Output balance principle: | Impedance balancing with Active Drive |
| Common Mode Rejection Ratio (CMRR): | > 60 dB |
| Power supply (for full specifications): | 48 V Phantom power (? 4 V) |
| Current consumption: | 2.8 mA |
| Connector: | XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: – phase |
| Color: | Matte black |
| Weight: | 164 g (5.8 oz) |
| Microphone diameter: | 19 mm (0.75 in) |
| Microphone length: | 198 mm (7.8 in) |
| Output voltage, RMS: | > 5 V |
| Polarity: | +V at pin 2 for positive sound pressure |
| Temperature range: | -40 ?C to 45 ?C (-40 ?F to 113 ?F) |
| Relative Humidity (RH): | Up to 90% |
| Sensitivity selection tolerance (at 1 kHz): | ? 1.5 dB |
Additional information
| Weight | 2 kg |
|---|
