KLING + FREITAG SW 215 E – SP

CHF6'520.00

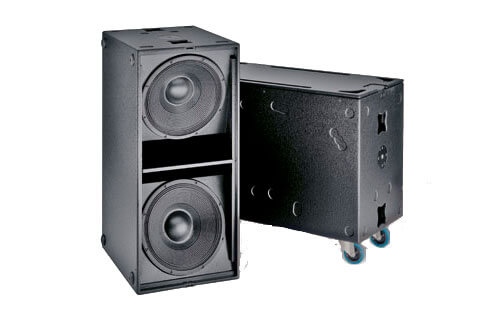

KLING + FREITAG SW 215 E SP bass, 2×15″, powered

Availability: <div class="">Habituellement sous 48h</div> SKU: K+F_SW_215E-SP Category:

Description

K&F SW 118E – SP

OVERVIEW

  • 1 x 18? Subwoofer with integrated driver and amplifier technology
  • Bass reflex enclosure in direct radiation design with exponantial tunnel geometry
  • Mobile version with castors and flying points
  • Max. SPL 133 dB (peak/1 m/half space)

TECHNICAL DATA

Design
Bass reflex system with exponential tunnel geometry, integrated driver and amplifier technology
Lower cut-off frequency -10 dB
30 Hz (FILTERS ‘ON’)
Frequency range ?3 dB
38 Hz ? 300 Hz (FILTERS ‘OFF’)
37 Hz ? 115 Hz (FILTERS ‘ON’)
Max SPL
127 dB (peak/1 m/free field, equivalent 133 dB half space)
Components
18? long excursion chassis, double-spider, 100 mm voice coil, internal and external ventilation, minimized distortions through demodulation rings (double DDR)
Input connectors
Pin 1 = ground
Pin 2 = + signal
Pin 3 = – signal
LINE IN: XLR 3 pin female
LINE OUT: XLR 3 pin male, parallel with LINE IN
Enclosure
15 mm frame reinforced multiplex plywood, impact proof black structured paint (PU), ball proof steel grille with exchangeable front foam, 2 ergonomic butterfly handles, K&M mounting plate M20 for distance pole, 4 x plastic sliders, stacking grooves, 4 x 100 mm rear mounted transport castors,
Rigging
4 flying points ‘allsafe JUNGFALK’
Dimensions (W x H x D)
600 x 682 x 770 mm (incl. castors)
Weight
52.3 kg

Additional information

Weight 73 kg

Brand

KLING+FREITAG
