Description

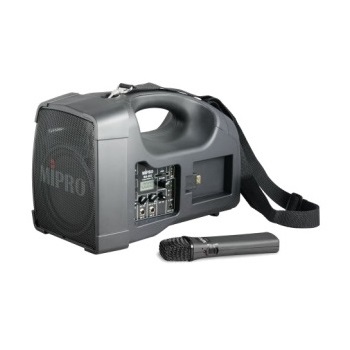

MA-202B is the flagship of personal wireless PA systems. This powerful system boasts versatile feature such as built-in convenient storage compartment and battery charger for ACT-222T handheld transmitter microphone. Lightweight, robust and battery operated, it is an ideal public address solution for small to medium crowds.
Ideal applications include:
- School classrooms
- Places of worship
- Presentations, seminars and meetings
- Day-care activities; playground duty
- Tour guides & Paging
- Fire fighters, law enforcement, search & rescue
- Street performers
- Factory or company tours
- Culmination of personal wireless PA designs.
- Powerful and crystal-clear sound projection.
- High efficiency class-D amplifier drives 2-way loudspeakers with level limiter.
- Built-in wireless receiver with 16 auto-scannable frequencies.
- One-touch Scan & ACT sync buttons for fast and easy channel set-up.
- AC and lithium rechargeable battery operation.
- Up to 8-hour of stand-by time per 4-hour full charge.
- USB & SD music player with LCD screen and individual volume controls.
- Optional ACT-30H handheld transmitter for improved sound quality.
- Convenient storage compartment and battery charger for ACT-202T handheld microphone.
- 4-segment battery meter for accurate MA-202B battery readings and charging status.
- 3-segment battery meter for accurate ACT-222T battery readings and charging status.
- Receiver volume can be adjusted by MA-202B volume control or wirelessly via ACT-222T.
| Portable PA | |||
| Max. Power Output | 56 Watts | ||
| Amplifier | Class D | ||
| Sensitivity | Typical: 96 dB | Maximum: 105 dB | ||
| T.H.D. | < 1% | ||
| Frequency Response | 50 Hz ~?18 kHz | ||
| Loudspeaker | 1 ” Tweeter and 5 ” Woofer | ||
| Audio Inputs | Wired:?6.3 mm (1/4 “) Wireless: Single-channel Digital Player: USB 2.0 and SD Card Reader Line-In: 6.3 mm (1/4 “) |
||
| Volume Control | Wired, Wireless, Line-in & Digital Player | ||
| Installation | Microphone stand, table mounted, shoulder belt. | ||
| Power Supply | AC:?External 100 ~?240 V AC switching power supply (Max. Power Consumption: 60 W) DC & Battery:?14.8 V / 2.6 AH rechargeable lithium battery (MB-25?1) |
||
| Charge Time | Up to 4 hours | ||
| Standby Time | Up to 8 hours | ||
| Battery Indicator | 4-level (25/50/75/100%) | ||
| Color | Black | ||
| Dimensions (W?H?D) | 163 ? 206 ? 306 mm / 6.4 ? 8.1 ? 12 “ | ||
| Weight | Approx. 2.9 kg / 6.4 lbs , battery included | ||
| Wireless System | |||
| Receiver | Single-channel with SCAN and ACT Sync | ||
| Frequency Range | UHF?480 ~?934 MHz (country dependent) | ||
| Bandwidth | 24 MHz | ||
| Preset Channels | 16 | ||
| Antenna | Built-in | ||
| Digital Audio Player | |||
| Player | Built-in USB 2.0 port and SD Card reader | ||
Additional information
| Weight | 3 kg |
|---|
