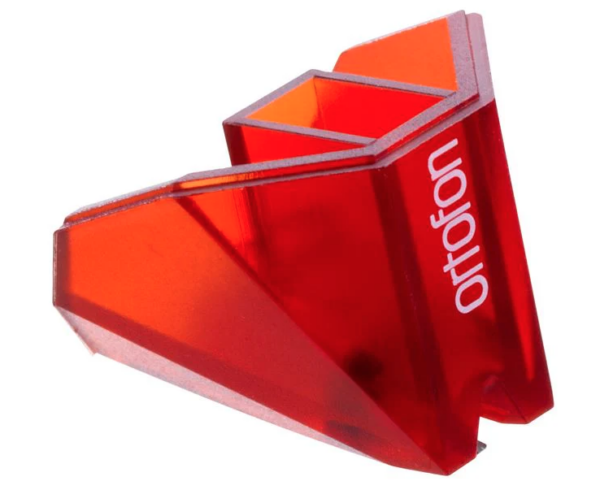

ORTOFON stylus / aiguille 2M RED
CHF79.00
ORTOFON stylus / aiguille 2M RED
- Description
- Additional information
- Brand
Description
Technical specifications
Frequency range – 20-22.000 Hz
Frequency response – 20-20.000 Hz + 3 / – 1 dB
Tracking ability at 315Hz at recommended tracking force *) – 70 ?m
Compliance, dynamic, lateral – 20 ?m/mN
Stylus type – Elliptical
Stylus tip radius – r/R 8/18 ?m
*) Typical value
Equivalent stylus tip mass – 0,5 mg
Tracking force range – 1,6-2,0 g (16-20 mN)
Tracking force, recommended – 1,8 g (18 mN)
Tracking angle – 20?
Stylus colour – Red
Recommended for following cartridges – 2M Red, interchangeable with 2M Blue
Additional information
| Weight | 0.5 kg |
|---|
