Description

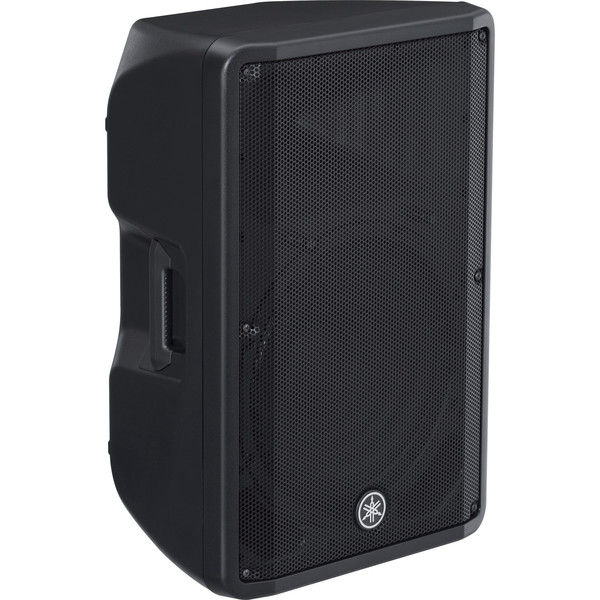

CBR15
The CBR15 provides the lowest frequency in its lineup, delivering outstanding performance for the front-of-house sound for live performance, DJ events or for installation situations that require highly prominent low and high SPL.
CBR10, CBR12, CBR15
| General specifications | CBR10 | CBR12 | CBR15 | |
|---|---|---|---|---|
| Speaker type | 2-way Speaker, Bass-reflex Type | 2-way Speaker, Bass-reflex Type | 2-way Speaker, Bass-reflex Type | |
| Frequency range (-10dB) | 50 Hz – 20 kHz | 48 Hz – 20 kHz | 46 Hz – 20 kHz | |
| Nominal coverage | H | 90? | 90? | 90? |
| V | 60? | 60? | 60? | |
| Components | LF | 10″ Cone, 2″ Voice Coil (Ferrite Magnet) | 12″ Cone, 2″ Voice Coil (Ferrite Magnet) | 15″ Cone, 2.5″ Voice Coil (Ferrite Magnet) |
| HF | 1″ Voice Coil, Compression Driver (Ferrite Magnet) | 1.4″ Voice Coil, Compression Driver (Ferrite Magnet) | 1.4″ Voice Coil, Compression Driver (Ferrite Magnet) | |
| Crossover | 2.8 kHz | 2.1 kHz | 2.0 kHz | |
| Power rating | NOISE | 175W | 175W | 250W |
| PGM | 350W | 350W | 500W | |
| PEAK | 700W | 700W | 1000W | |
| Nominal impedance | 8? | 8? | 8? | |
| SPL | Sensitivity (1W; 1m on axis) | 94dB SPL | 96dB SPL | 96dB SPL |
| Peak (Calculated) | 123 dB SPL | 125 dB SPL | 126 dB SPL | |
| I/O connectors | 1/4″ Phone x 1, speakON NL4MP x 1 | 1/4″ Phone x 1, speakON NL4MP x 1 | 1/4″ Phone x 1, speakON NL4MP x 1 | |
| Cabinet material | Plastic | Plastic | Plastic | |
| Finish | Black | Black | Black | |
| Handle | Top x 1 | Side x 2 | Side x 2 | |
| Flying and mounting hardware | Bottom x 2 (Fit for M8 x 15mm Eyebolts) | Bottom x 2, Rear x 1 (Fit for M8 x 15mm Eyebolts) | Bottom x 2, Rear x 1 (Fit for M8 x 15mm Eyebolts) | |
| Pole socket | ?35 mm?Bottom x 1 | ?35 mm?Bottom x 1 | ?35 mm?Bottom x 1 | |
| Dimensions | W | 308mm (12.1″) | 376mm (14.8″) | 455mm (17.9″) |
| H | 493mm (19.4″) | 601mm (23.7″) | 700mm (27.6″) | |
| D | 289mm (11.4″) | 348mm (13.7″) | 378mm (14.9″) | |
| Net weight | 9.4 kg (20.7 lbs) | 13.9 kg (30.6 lbs) | 17.7 kg (39.0 lbs) | |
| Accessories | Optional Speaker Bracket: BBS251, BCS251, BWS251-300, BWS251-400 | Optional Speaker Bracket: BBS251, BCS251, BWS251-300, BWS251-400 | Optional Speaker Bracket: BBS251, BCS251, BWS251-300, BWS251-400 | |
Additional information
| Weight | 18 kg |
|---|
