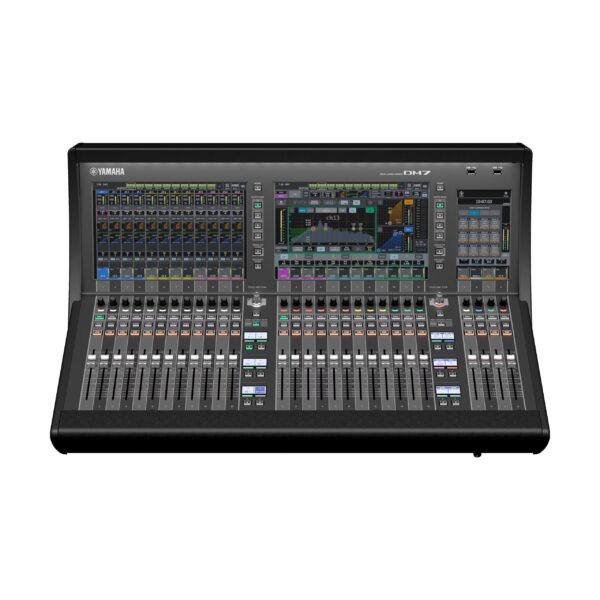

YAMAHA DM7

The DM7 is a Dante-equipped versatile digital mixing console with unparalleled sound quality, ease of operation, and high reliability that make it perfect for a wide range of applications. The DM7 is configured with 24 + 4 faders and a 2 x 12” + 1 x 7” multi-touch screen.

• Input mixing channels: 120 mono
• Buses: 48 Mix + 12 Matrix + 2 Stereo
• Display: 12.1″ multi-touch screen x 2, 7″ multi-touch screen x 1
• Faders: 28 (12 + 12 + 4)
• Analog I/O: 32 inputs / 16 outputs
• Dante: 144 in / 144 out
• AES/EBU: 2 in / 2 out (with SRC)
• Slot: PY Slot x 1
• USB Audio Interface: 18 in / 18 out
• Power supply: Redundant power supply built-in
• Power consumption: 240 W
• Dimensions (W x H x D): 793 mm x 324 mm x 564 mm (31.3″ x 12.8″ x 22.2″)
• Net Weight: 23.5 kg (51.8 lb)
