Description

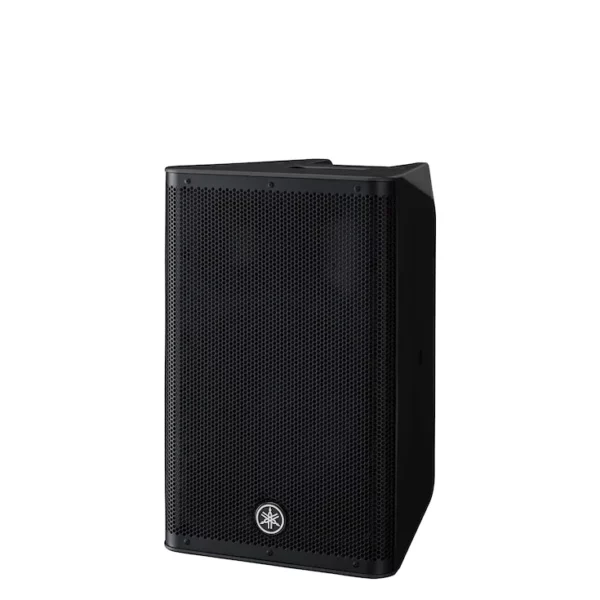

Portable, yet capable of producing an astonishing 132 dB SPL, the DXR10mkII?s compact, functional design makes it ideal for a wide range of applications. Whether providing simple vocal/instrument amplification, very powerful floor monitoring or comprising a compact SR system – the DXR10mkII delivers without compromising sound quality and power.
| General specifications | DXR10 | |
|---|---|---|
| Speaker type | 10″ 2-way, Bi-amp powered speaker, Bass-reflex type | |
| Frequency range | -10dB | 56Hz – 20kHz |
| Nominal coverage | H | 90? |
| V | 60? | |
| Components | LF | Diameter:10″ cone, Voice Coil:2″, Magnet:Ferrite |
| HF | Diaphragm:1.75″, Type: 1″ throat compression driver, Magnet:Neodymium | |
| Crossover | FIR-X tuning? (linear phase FIR filter) | |
| Output power | Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W) | |
| Maximum output level (1m; on axis) | 132dB SPL | |
| I/O connectors | INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1 ), LINK OUT: XLR x 1 | |
| Processors | D-CONTOUR: FOH/MAIN, MONITOR, OFF | |
| Power requirements | 100V – 240V, 50Hz/60Hz | |
| Power consumption | 90W | |
| Flying and mounting hardware | Top x2, Rear x1 (Fits for M8 x 15mm eyebolts) | |
| Pole socket | 35mm with 2-way features (0 or 7 degrees) | |
| Dimensions | W | 305mm (12″) |
| H | 502mm (19 6/8″) | |
| D | 310mm (12 2/8″) | |
| Net weight | 13.9kg (30.6lbs) | |
| Accessories | UB-DXR10 (U-barcket) | |
| Others | Material: ABS (Matte Finish, Black) | |
Additional information
| Weight | 18 kg |
|---|
