Description

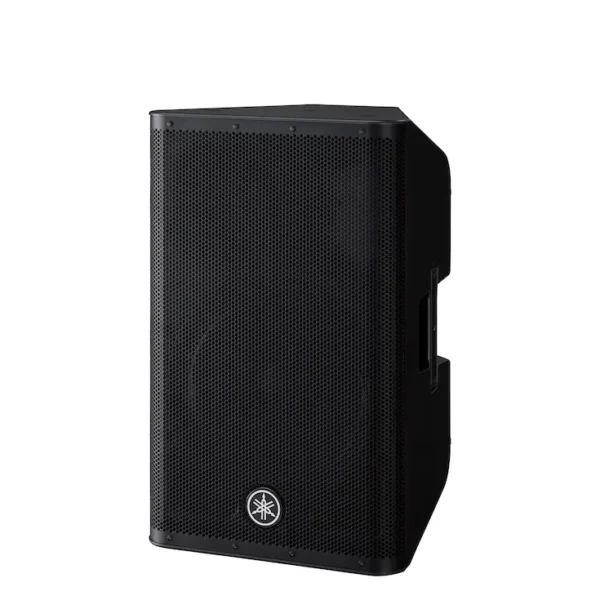

The DXR12mkII is an extremely high-power loudspeaker that is capable of producing a maximum SPL of 134dB with its impressive 1100W of power. It is the perfect solution for live sound applications that demand wide bandwidth and extremely high-resolution sound.
| General specifications | DXR12 | |
|---|---|---|
| Speaker type | 12″ 2-way, Bi-amp powered speaker, Bass-reflex type | |
| Frequency range | -10dB | 52Hz – 20kHz |
| Nominal coverage | H | 90? |
| V | 60? | |
| Components | LF | Diameter:12″ cone, Voice Coil:2.5″, Magnet:Ferrite |
| HF | Diaphragm:1.75″, Type: 1″ throat compression driver, Magnet:Neodymium | |
| Crossover | FIR-X tuning? (linear phase FIR filter) | |
| Output power | Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W) | |
| Maximum output level (1m; on axis) | 134dB SPL | |
| I/O connectors | INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1 ), LINK OUT: XLR x 1 | |
| Processors | D-CONTOUR: FOH/MAIN, MONITOR, OFF | |
| Power requirements | 100V – 240V, 50Hz/60 Hz | |
| Power consumption | 110W | |
| Flying and mounting hardware | Top x2, Rear x1 (Fits for M10 x 18mm eyebolts) | |
| Pole socket | 35mm with 2-way features (0 or 7 degrees) | |
| Dimensions | W | 362mm (14 2/8″) |
| H | 601mm (23 5/8″) | |
| D | 350mm (13 6/8″) | |
| Net weight | 18.6kg (41.0lbs) | |
| Accessories | UB-DXR12(U-barcket) | |
| Others | Material: ABS (Matte Finish, Black) | |
Additional information
| Weight | 22 kg |
|---|
