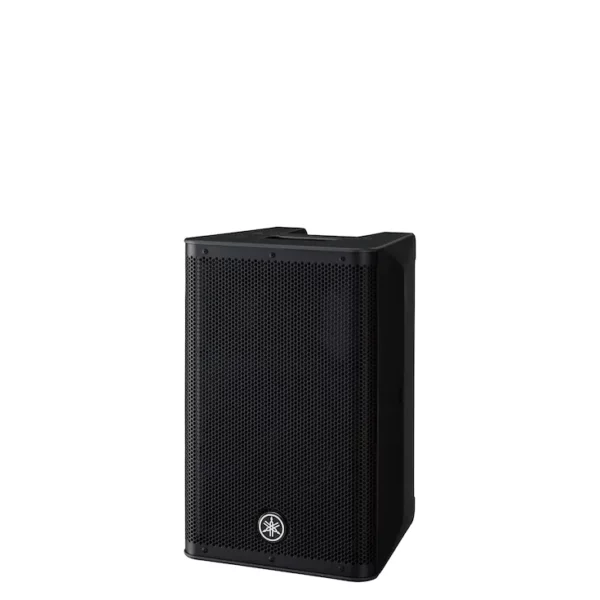

YAMAHA DXR 8 MKII
Original price was: CHF742.00.CHF639.00Current price is: CHF639.00.
YAMAHA DXR 8 MKII
- Description
- Additional information
- Brand
Description
The most compact of the DXR mkII Series speakers, the DXR8mkII makes the most of its 1100W of power, delivering extremely high output while maintaining outstanding resolution. Adding a DXS12mkII subwoofer gives you an ultra-compact high-power SR system.
| General specifications | DXR8 | |
|---|---|---|
| Speaker type | 8″ 2-way, Bi-amp powered speaker, Bass-reflex type | |
| Frequency range | -10dB | 57Hz – 20kHz |
| Nominal coverage | H | 90? |
| V | 60? | |
| Components | LF | Diameter:8″ cone, Voice Coil:2″, Magnet:Ferrite |
| HF | Diaphragm:1.75″, Type: 1″ throat compression driver, Magnet:Neodymium | |
| Crossover | FIR-X tuning? (linear phase FIR filter) | |
| Output power | Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W) | |
| Maximum output level (1m; on axis) | 130dB SPL | |
| I/O connectors | INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1), LINK OUT: XLR x 1 | |
| Processors | D-CONTOUR :FOH / MAIN, MONITOR, OFF | |
| Power requirements | 100V – 240V, 50Hz/60Hz | |
| Power consumption | 90W | |
| Flying and mounting hardware | Top x2, Rear x1 (Fits for M8 x 15mm eyebolts) | |
| Pole socket | 35mm with 2-way features (0 or 7 degrees) | |
| Dimensions | W | 280mm (11″) |
| H | 458mm (18″) | |
| D | 280mm (11″) | |
| Net weight | 12.8kg (28.2lbs) | |
| Accessories | UB-DXR8 (U-barcket) | |
| Others | Material: ABS (Matte Finish, Black) | |
Additional information
| Weight | 15 kg |
|---|
