Description

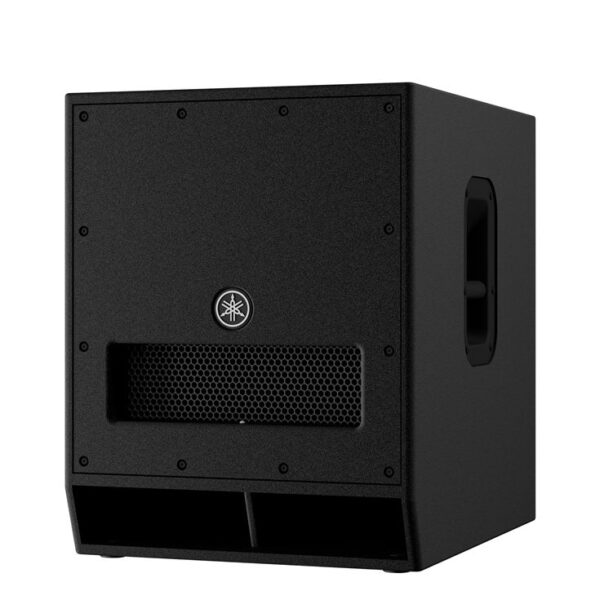

DXS15
The all-new DXS15 subwoofer delivers powerful yet focused low end reaching as low as 42Hz. The DXS?s fully optimized band-pass design combines with its powerful Class-D amplifier, long-travel 15? woofer, and formidable DSP to deliver a tight, impressive bass with outstanding depth and high power output.
DXS12, DXS15, DXS18
| General specifications | DXS12 | DXS15 | DXS18 | |
|---|---|---|---|---|
| Speaker type | 12″ powered subwoofer, Band-pass type | 15″ powered subwoofer, Band-pass type | 18″ Powered subwoofer, Band-pass type | |
| Frequency range (-10dB) | 47Hz – 160Hz | 45Hz – 160Hz | 32Hz ? 120Hz | |
| Components | LF | 12″ cone, Voice Coil:2.5″ | 15″ cone, Voice Coil:2.5″ | 18″ cone, Voice Coil:4″ |
| Output power | Dynamic:950W / Continuous: 600W | Dynamic:950W / Continuous: 600W | Dynamic:1020W / Continuous: 800W | |
| Maximum output level (1m; on axis) | 131dB SPL | 132dB SPL | 136dB SPL | |
| I/O connectors | INPUT: XLR-3-31 x2 , THRU: XLR3-32 x 2(Parallel with INPUT) | INPUT: XLR-3-31 x2 , THRU: XLR3-32 x 2(Parallel with INPUT) | INPUT: XLR3-31 x2 , THRU: XLR-3-32 x 2(THROUGH or HPF POST) | |
| Processors | D-XSUB: BOOST,XTENDED-LF, OFF | D-XSUB: BOOSTXTENDED-LF OFF | D-XSUB: BOOST, XTD LF, NORMAL | |
| Cooling | Fan cooling, 4 speeds | Fan cooling, 4 speeds | Natural convection | |
| Power requirements | 100V – 240V, 50Hz/60Hz | 100V – 240V, 50Hz/60Hz | 100V ? 240V, 50Hz/60Hz | |
| Power consumption | 120W | 120W | 100W | |
| Pole socket | 35mm (Top x1) | 35mm (Top x1) | 35 mm (depth 80 mm) & M20 (threaded depth 25 mm) | |
| Dimensions | W | 397mm (15.6″) | 478mm (18.8″) | 563mm (22.2″) |
| H | 563mm (22.2″) | 618mm (24.3″) | 683mm (26.8″) | |
| D | 594mm (23.4″) | 624mm (24.5″) | 721mm (28.4″) | |
| Net weight | 33.0kg (72.8lbs) | 38.0kg (83.8lbs) | 49.7kg (110lbs) | |
| Others | Material: Wood (LINE-X?, Black) | Material: Wood (LINE-X?, Black) | Material: Plywood (LINE-X?, Black) | |
33
Additional information
| Weight | 38 kg |
|---|
