Description

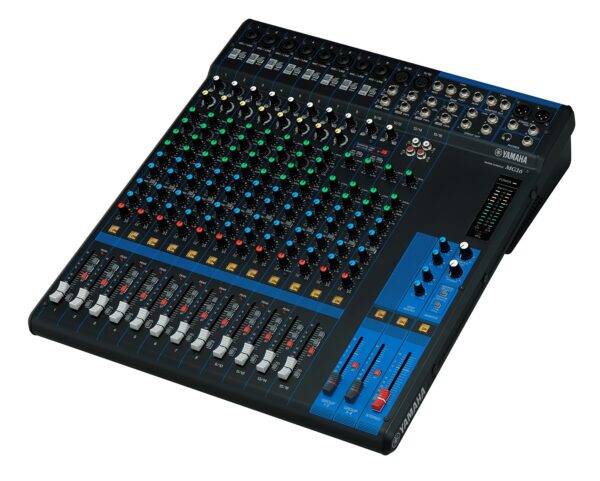

- Console de mixage 16 canaux
- 10 entr?es micro, 16 entr?es ligne (8 mono + 4 st?r?o)
- 4 bus GROUP, 1 bus st?r?o
- 4 Aux
- Pr?amplis micro D-PRE avec circuit Darlington invers?
- 8 compresseurs 1-Knob
- Att?nuateur PAD sur les entr?es mono
- Alimentation fant?me +48V
- Sorties XLR et Jack sym?triques
- Alimentation interne universelle
- Kit de montage en rack inclus
- Ch?ssis m?tallique r?sistant
- Dimensions (LxHxP): 444 mm x 130 mm x 500 mm
- Poids net: 6.6 kg
Caract?ristiques techniques
Outline
| I/O | Phantom power | +48 V |
|---|---|---|
| Input Channels | Mono[MIC/LINE] | 8 |
| Mono/Stereo[MIC/LINE] | 2 | |
| Stereo[LINE] | 2 | |
| Output Channels | STEREO OUT | 2 |
| MONITOR OUT | 1 | |
| PHONES | 1 | |
| AUX SEND | 4 | |
| GROUP OUT | 4 | |
| Bus | Stereo: 1, GROUP: 4, AUX: 4 | |
| Input Channel Function | PAD | 26 dB (Mono) |
| HPF | 80 Hz, 12 dB/oct (Mono/Stereo: MIC only) | |
| COMP | 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec | |
| EQ HIGH | Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving | |
| EQ MID | Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz ? 5 kHz peaking | |
| EQ LOW | Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving | |
| PEAK LED | LED turns on when post EQ signal reaches 3 dB below clipping | |
General specifications
| Total harmonic distortion | 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min | |
|---|---|---|
| Frequency response | +0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min | |
| Hum & noise level | Equivalent input noise | -128 dBu (Mono Input Channel, Rs: 150?, GAIN knob: Max) |
| Residual output noise | -102 dBu (STEREO OUT, STEREO master fader: Min) | |
| Crosstalk | -78 dB | |
| Power requirements | AC 100 ? 240 V, 50 / 60 Hz | |
| Power consumption | 30 W | |
| Dimensions | W | 444 mm (17.5″) |
| H | 130 mm (5.1″) | |
| D | 500 mm (19.7″) | |
| Net weight | 6.6 kg (14.6 lbs.) | |
| Accessories | Included Accessory: Owner?s Manual, Technical Specifications, AC power cord, Rack-mount kit | |
| Others | Operating Temperature: 0 to +40?C | |
Additional information
| Weight | 5 kg |
|---|
