ZOOM LIVETRAK L-12

SKU: LiveTrak_L‑12 Category:
Add to wishlist

Description

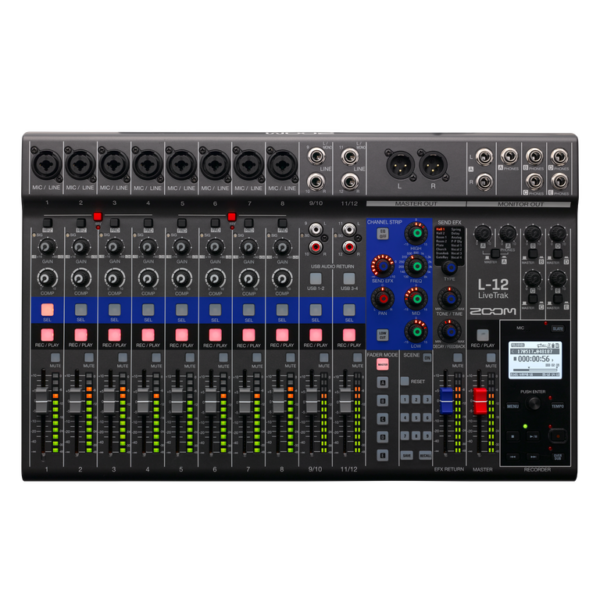

LiveTrak L‑12

Mix, Record, Monitor, Playback, and Remix

With the LiveTrak L-12, you can finally mix, record, and monitor with a single piece of gear. It’s the only digital console that lets you mix your live performance and record up to 12 discrete channels – all while providing five individual custom headphone mixes

Features at a Glance
  • 12 discrete channels (8 mono plus 2 stereo) with XLR or 1/4-inch connectivity
  • 14-track simultaneous recording, 12-track playback
  • 14-in/4-out USB audio interface connectivity
  • 5 powered headphone outputs, each with a customizable and saveable mix
  • Add backing/click tracks from your computer to your live mix and recording
  • RCA and TS line inputs
  • 48V phantom power (channels 1-4 and 5-8)
  • Hi-Z connectivity (channels 1 and 2)
  • 26 dB pad (channels 3-8)
  • Built-in compression control (Channels 1-8)
  • Digital level meters -48 dB to -0 dB
  • Master mute button
  • Low-cut control
  • Stereo panning
  • Master and Monitor Outputs A-E
  • Scene saving function, up to 9 scenes saved at a time
  • 16 built-in delay and reverb effects with adjustable parameters
  • Built-in slate mic
  • Class-compliant mode (for iOS compatibility)
  • SD card input
  • Built-in metronome
  • Automatic recording starting/stopping capability
  • Project protection
  • Import/export projects with USB 2.0 host port
  • Latency adjustment for A-to-D conversion
  • Compatible functions for ZOOM FS01 footswitch

Effortless
Live Mixing

LiveTrak’s 12 discrete channels (eight
mono plus two stereo) have a 3-band
mid-parametric EQ and 16 built-in
send effects. Its eight mono channels
also have a dedicated compressor.
With all these controls plus its
12-segment LED metering, the
L-12 offers just what you need
for intuitive mixing

Record
Everything,
Remix
Anywhere

LiveTrak lets you record 12 discrete tracks up to
24-bit/96 kHz WAV audio to an SD card
while simultaneously mixing your live show.
Tracks are recorded pre-EQ and effects, so
they can be transferred to your favorite DAW
for further mixing and editing.



*Effects, EQ, overdub, audio interface,
​fader modes A-E, and channels 13-14
(stereo mix) are not available in 96 kHz

Five Custom
Monitoring
Mixes

Each of LiveTrak’s five monitor outputs
provides a unique mix, so every performer
can create and save a mix that’s tailored
to their preferences. Its headphone
amplifier delivers volume that stands up
in any live environment without the need
for a separate headphone monitoring setup

USB Connectivity for Your DAW

LiveTrak is also a 14-in/4-out USB audio interface with flexible routing options, offering unlimited possibilities. Class compliant mode, which enables connection with iOS devices, is also supported.*

*Apple Lightning to USB Camera Adapter required.



Additional information

Weight 4 kg

Brand

ZOOM
